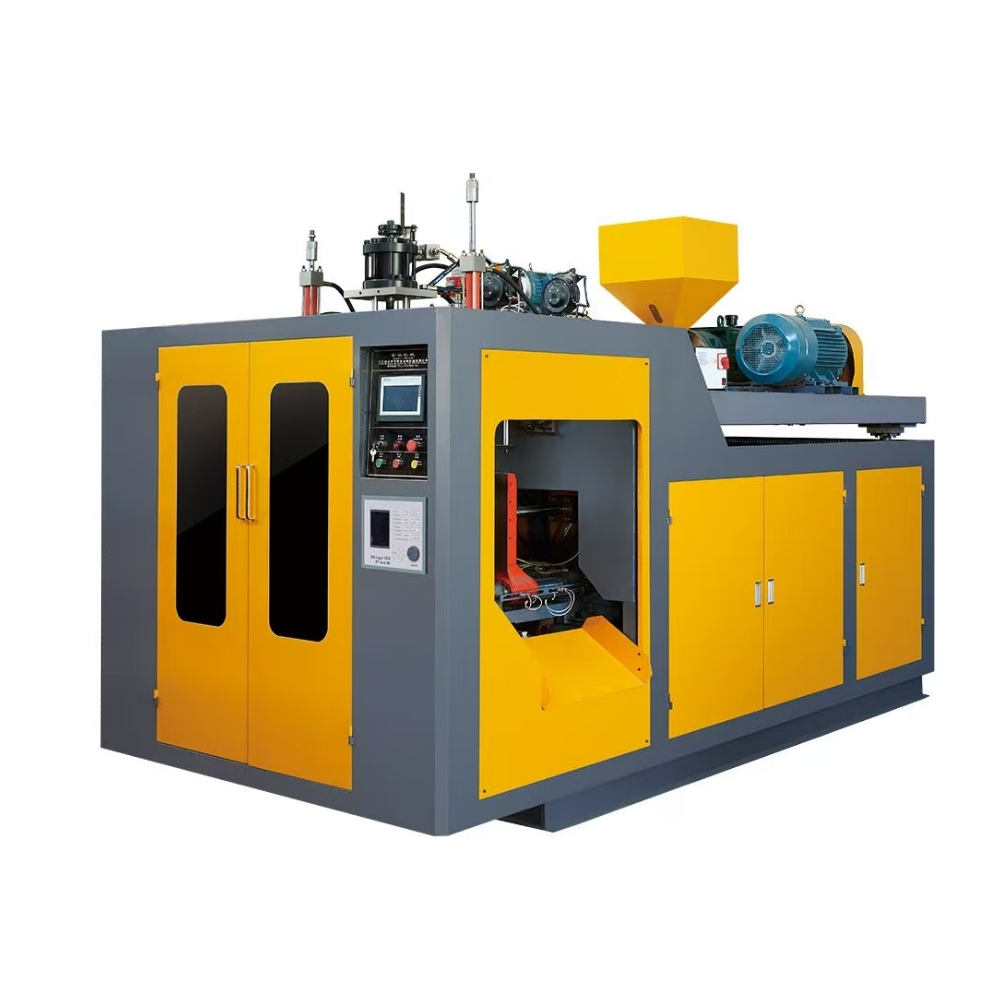

Double Station Extrusion Blow Molding Machine

0.1L-16L

Raw Material:PETG.PE.PP.HDPE,HDPP.PC.PVC.PETG.EVOH.etc.

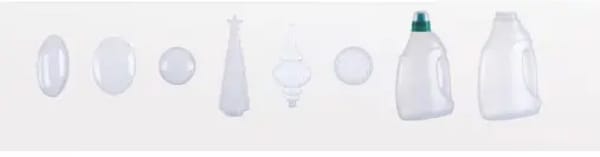

Production Volume: From 0.1 Liter-16 Liter

Station: Double

Cavity: From 1 Cavity To 6 Cavity

Production Layer:From 1 Layer To 6 Layer

Model	Unit	ES-2LD	ES-5LD	ES-16LD
Max Volume	L	2	5	16
Max Diameter Two Cavity	mm	120	160	260
Max Diameter Three Cavity	mm	90	110	180
Max Diameter Four Cavity	mm	65	85	130
Clamping Force	KN	100	100	155
Opening Stroke	mm	150-385	145-505	230-620
Die Plate Size	mm	290×320	320×380	500×490
Screw Diameter	mm	60-70	70-80	90
Screw L/D Ratio	L/D	25:01:00	25:01:00	25:01:00
Extruding Capacity	Kg/hr	60-80	100-120	130-160
Power Of Die Heating	KW	4.5-10	4.5-11	6-13
Power Of Screw	KW	5-8	6-8	8-10
Extrusion Motor Power	KW	15-18.5	20-30	30-40
Oil pump Motor Power	KW	7.5	11	11-15
Air Pressure	Mpa	0.6	0.6	0.8
Air Capacity	m³/min	1-1.5	1-1.5	1-1.5
Installed Power	KW	26-35	34-45	50-65
Actual Power	KW	18-26	28-36	40-50
Machine Size	m	3×1.7×2.3	3.8×2.2×2.58	4.5×2.7×3.1
Machine Weight	ton	4.5	6	10
