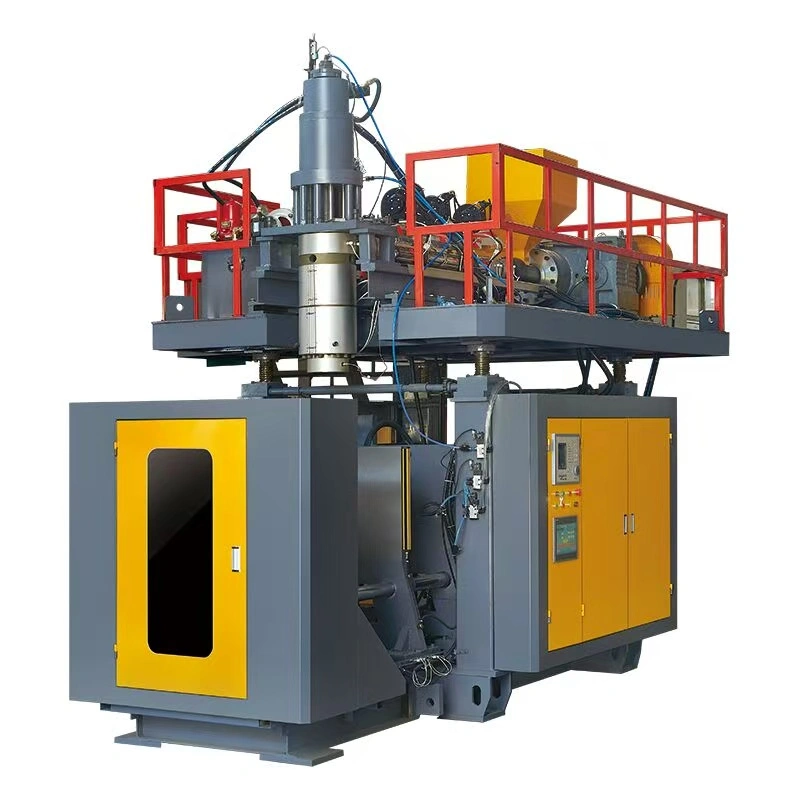

Full Automatic Single Station Extrusion Blow Molding Machine

Model

Unit

ES-50L

ES-30L

Max Volume

L

50

30

Clamping Force

KN

260

215

Opening Stroke

mm

400-1000

350-800

Die Plate Size

mm

880×780

580×740

Screw Diameter

mm

90

80

Screw L/D Ratio

L/D

25:01:00

25:01:00

Extruding Capacity

Kg/hr

110-160

100-120

Power of Die Heating

KW

5.5-14.5

4.5-13

Power of Screw

KW

16-20

14-18

Extrusion Motor Power

KW

37-45

30-37

Oil pump Motor Power

KW

22

22

Air Pressure

Mpa

0.8

0.8

Air Capacity

m³/min

0.8-1.0

0.8-1.0

Installed Power

KW

105-120

100-110

Actual Power

KW

35-50

30-40

Machine Size

m

5×2.7×3.5

5×2.7×3.5

Machine Weight

ton

13

10
